With this technology, the LED chips are in the form of a semiconductor chip, which is neither encased nor connected. The semiconductor chip is described as a "Die". This LED chip is processed by means of a special procedure which is called "Die Bonding". Here the individual chips are placed on the PCB and using the Wire Bonding method, connected to the contact surface of the PCB, which are described as "Pads". Gold wires in the micrometer range are used for contacting. The COB technology allows for virtually limitless freedom of scope for the PCBs and thus serves as the basis for totally unique LED solutions.

COB LED is the most popular item in WEIDI. It help to solve the problem that LED lamp are not bright enough to replace halogen with a beautiful design. A full sery of COB LED including COB LED bulb, COB LED lamp, COB LED tube, COB LED machine light, COB LED table light, COB LED sewing machine lights, ect.

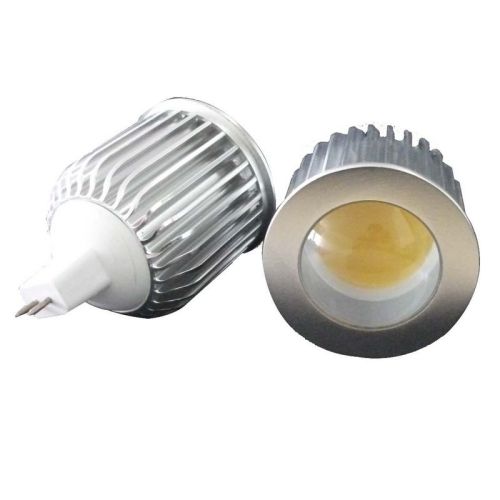

COB LED MR16 6watt 400LM 6000k cooll white lamp
Compiance:

2004/108/EC Electromagnetic compatibility (EMC)
2005/32/EC Ecodesign Requirements
244/2009 (EC) implementing Directive 2005/32/EC
EN 60968 Safety requirements self ballasted lamps for general lighting
IEC 62560 Self-ballasted LED-lamps for general lighting services > 50 V
EN 62471 Photobiological safety of lamps and lamp systems
EN 55015 Limits and methods of measurement of radio disturbance
EN 61000-3-2 Limits for harmonic current emission
EN 61000-3-3 Limitation of voltage changes, voltage fluctuations, flicker
EN 61547 Electromagnetic compatibility immunity requirements

Description: COB LED MR16 6watt 400LM 6000k cool white lamp
Model:MR16-3-M-6W-CW
Size:D50*H181mm
LED Power:5w
Power Consumtion: 6w
Light Base: MR16 base
Halogen magnetic transformer: NA
Halogen Electrical transformer: NA
LED power supply: Be compatible with external
Lamp Luminous Flux [lm]: 400lm
Lamp Efficacy [lm/w] : 80
Viewing Angle: 90 degree
Beam Angle[degree] :90 D
ReplacementHalogen Counterparts:50w Halogen light (GE/Philips/Osram)
LED Quantity [pieces]: 1 PCS
LED Brands: Epistar/Cree
LED Color: Warm white/ Netural white/ cool white
LED Temperature:3000k/4000K/5000k/6000k
CRI:80
Input Voltage[volts] :AC/DC 12v
Power Factor:0.6
White LED lifetime [hours]: 30,000 hours at +80% light lumens maintenance
Lamp Light Decay Rate at 3,000hours:3%
Dimmable:optional
Ambient Temperature:-30--40D
Starting time [sec]:0
Safety certificate number :VDE Testreport-FG43-1-148509
                                               CE test NO.:HZ11050101001
Lumen maintenance factor at the end of the nominal life:80%
Number of switching cycles before failure:120,000
Diameter:50cm
Height:81cm
Net Weight:130g
Warranty :two years
Certificates:VDE,CE&ROhs

COB LED MR16 6000K cool white 6watt 400LM lamp
